Belkafilter is just a portafilter. Also, it is a measuring device that shows more than 11 indicators with four sensors. Try extracting coffee as usual. The belkafilter automatically detects the extraction and stores the extraction log and tells you how consistently it is being extracted.
before, after
before
Bottomless portafilter, TDS refractometer, temperature PID system... there were innovations for best, consistent extraction.
However, so far, there has been no direct measurement of the actual extraction from the filter basket and below it.
after
Belkafilter is the world's first product to measure the actual extraction directly from the filter basket and below it and show it in real time. Without interrupting or blocking the extraction flow.
Belkafilter allows different people to communicate on a single quantitative basis about the different extraction processes of different machines.
❊ Belkafilter is compatible with many machines, including Faema, La Marzocco, Kees Van Der Western, Slayer, and Synesso. Please check the compatibility page.
Sensor location, Measurement technology
Filter pressure sensor is located outside of the basket. To measure the pressure without blocking the extraction flow, the Belka team developed a completely new technology. The belkafilter measures the pressure inside the basket through the expansion of the basket for the first time in the world.
Filter temperature sensor is located on the outer side of the basket. The Belka team devised a new method to obtain meaningful information from the temperature of the coffee puck without interfering with the extraction. Belkafilter estimates the uniformity of the extraction water flow from the temperature at the puck rim.
Coffee concentration seneor and Coffee temperature sensor are located near the outlet of the lower cap. To measure real-time concentration changes without blocking the extraction flow, the Belka team has developed a completely new method. Belkafilter measures conductivity by inducing flow for the first time in the world, which estimates real-time concentration changes in coffee being extracted.
Bluetooth scale can be connected to the belka app. The flow rate and weight can be measured and recorded together.
❊ Currently, only some models of ACAIA are compatible, and other scales will be compatible soon.
"How can I use this?"
Target
Indicator
Measurement method
Managing extraction consistency
Coffee puck resistance change during extraction
Estimate through changes in the pressure and flow rate inside the filter during extraction Filter pressure sensorBluetooth scale (Flow)
Managing extraction consistency
Consistency of the flow of water through the coffee puck
Check filter temperature during extraction Filter temperature sensor
Managing extraction consistency
Filter basket preheating temperature
Check filter temperature before extraction Filter temperature sensor
Managing extraction consistency
Consistency of extracted espresso temperatures
Check the coffee temperature at the end of extraction Coffee temperature sensor
Managing extraction consistency
The time it took for coffee extraction to begin
Measure the time from the start of extraction, or from the pressure detection to the EC detection Filter pressure sensorConcentration(EC) sensor
Managing extraction consistency
Consistency of concentration changes during extraction
Check the slope of the EC graph during extraction Concentration(EC) sensor
Managing extraction consistency
Consistency of extracted concentrations (beta)
Estimate through changes in EC and flow rate during extraction Concentration(EC) sensorBluetooth scale (Flow)
Improve extraction quality
Whether there was abnormal channeling
Check the instant fluctuation of the EC during extraction Concentration(EC) sensor
Management of machine pressure performance
Pressure inside filter with no flow
Measure using 'blind filter', without coffee Filter pressure sensorBlind filter
Management of machine pressure performance
Pressure inside filter with constant flow
Measure using 'Orifice Pad™' without coffee Filter pressure sensorOrifice pad™
Management of machine temperature performance
Machine extraction water temperature measured in accordance with SCA regulations
Preheat ⇢ Install 'Orifice Pad™' ⇢ Measured by filter temperature 20 seconds after Filter temperature sensorOrifice pad™

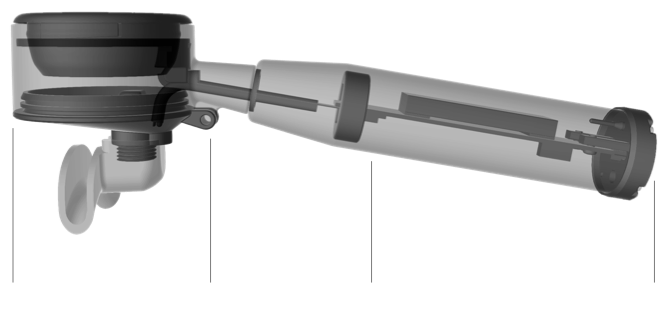

The Structure of Belkafilter
There is no problem if the head of the belkafilter is submerged.
Precision sensors are installed in the filter basket, preventing the user from removing the filter basket. Therefore, there is an openable lid at the bottom of the portafilter to clean the filter and the sensor.
The belkafilter must be used by connecting the display device. Tablet PC or smartphone. They are connected by Bluetooth 4.0.
The belkafilter is battery powered and wirelessly connected. Charge with the USB-C.
